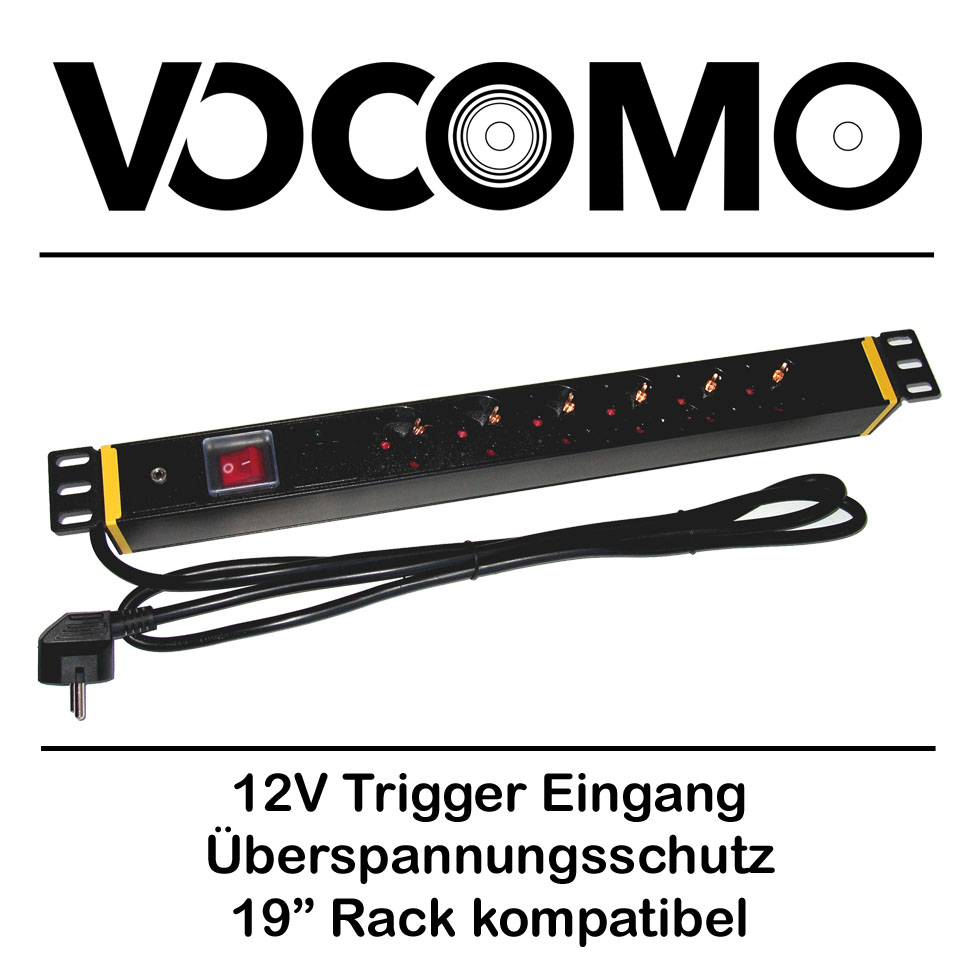

Professional 6x PDU with Trigger Input Switch
6x German "SCHUtzKOntakt" plugs - 3680 Watt
for AV-Amplifier and Receiver
Switch off standby power consumption of your home entertainment equipment - comfortably with your remote control
for Anthem, Arcam, Bluesound, Cambridge, Cocktail, Denon, Harman-Kardon, Marantz, NAD, Onkyo, Pioneer, Sony, Yamaha i.a.

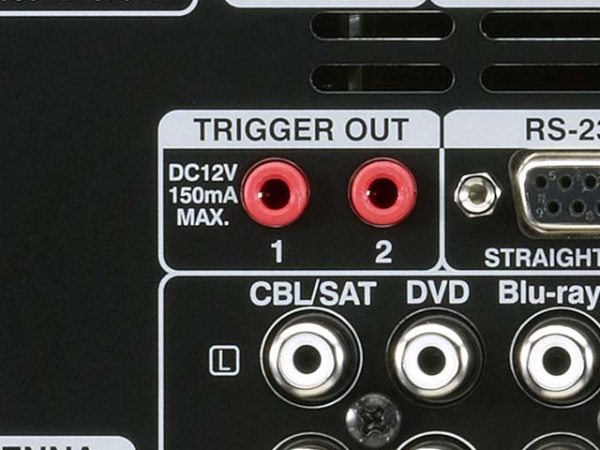

Switch the power supply of your entire home entertainment system via the Trigger output of your AV-Amplifier/Receiver:
Turn connected devices on and off with your amplifier/receiver!
6x German "SCHUtzKOntakt" plugs - 3680 Watt
for AV-Amplifier and Receiver
Switch off standby power consumption of your home entertainment equipment - comfortably with your remote control
for Anthem, Arcam, Bluesound, Cambridge, Cocktail, Denon, Harman-Kardon, Marantz, NAD, Onkyo, Pioneer, Sony, Yamaha i.a.
Switch the power supply of your entire home entertainment system via the Trigger output of your AV-Amplifier/Receiver:
Turn connected devices on and off with your amplifier/receiver!
Advantages
- High-performance relay for high inrush currents (amplifier, subwoofer, ...)
- No standby power consumption of connected devices
- No own consumption when switched off
- On/Off automatically together with your AV-Amplifier/Receiver
- Safe and reliable
- All kinds of devices switchable - e.g. power amplifier, DVD-/BluRay player, TV, active speakers, subwoofer, ...
- Depending on AV-Amplifier/Receiver: Individually programmable switching based on the selected source and/or switching by IR remote control
- Simply connect the Trigger output of your AV-Amplifier/Receiver with our Trigger Power Adapter via the 3.5mm jack cable (included)
- The PDU can be switched on either with the 12V Trigger input or with the manual switch
- The integrated surge protection reliably protects your connected equipment from surges and overvoltages. The circuit is only active in case of an overvoltage => No influence on the performance of the connected equipment in normal operation
- Output: 230V, 16A (3680 Watt switching power)
Inrush current up to max. 165A @ 20ms - Trigger Input: 12V, 33mA (= 0.033A)
Note: Please check if the Trigger output of your amplifier/receiver can drive min. 33mA (= 0.033A). If you need any help, please contact us and tell us your amplifier/receiver model.
Attention Rotel/Emotiva customers: Rotel/Emotiva do not specify the current of their trigger outputs. Based on experience, many Rotel/Emotiva devices cannot provide the required 33mA. In this case, use the version V2.or the USB Power Adapter. - 6x SCHUtzKOntakt plugs with child safety mechanism

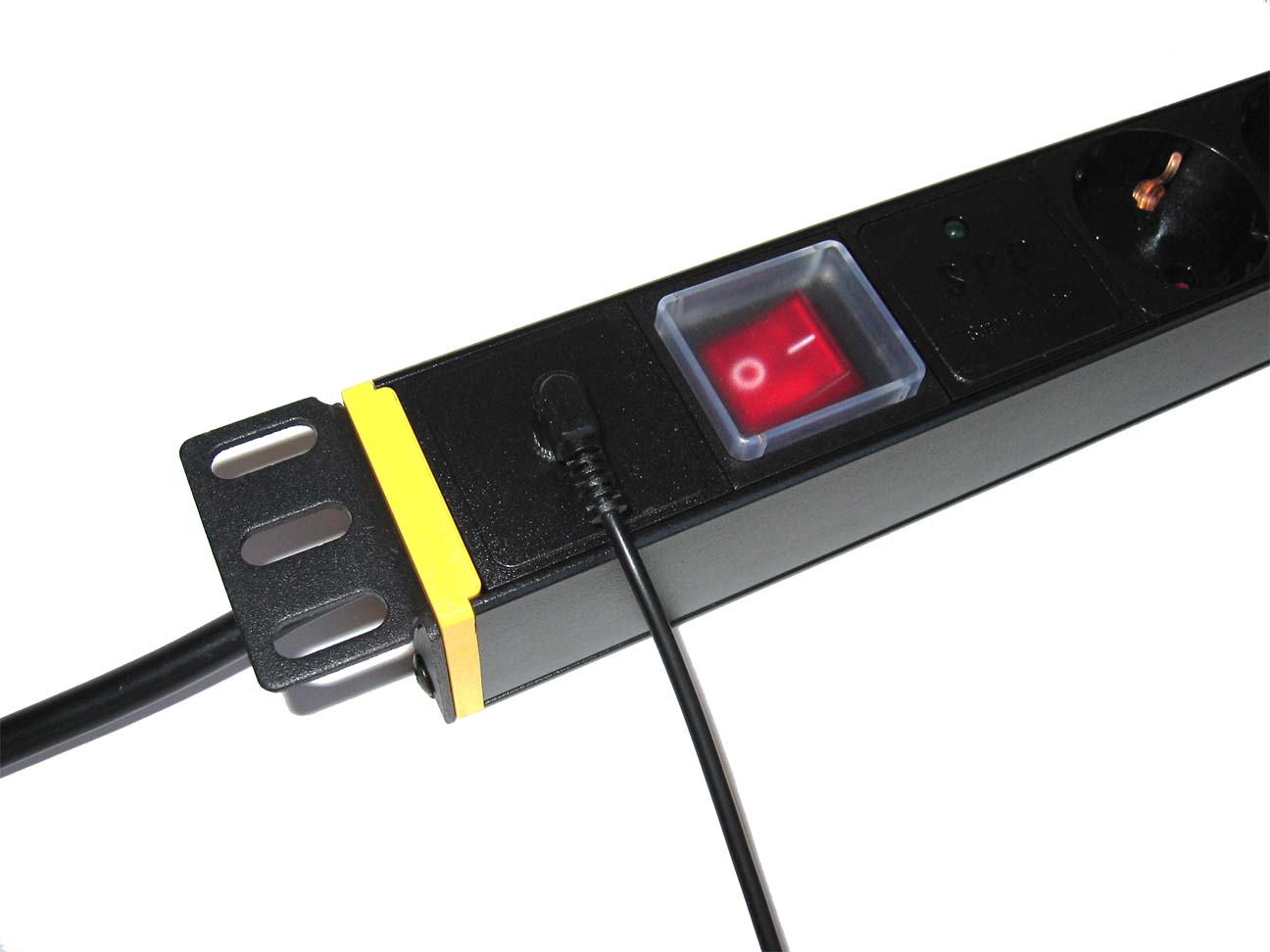

- Manual switch with indicator light (parallel to Trigger)
- Overvoltage/surge protection
- Solid aluminium chassis
- CEE 7/7 plug (Germany & France compatible)
- DIN VDE 0620-1 compliant
- Brackets for 19" racks (removable)
- 1.8m power cord

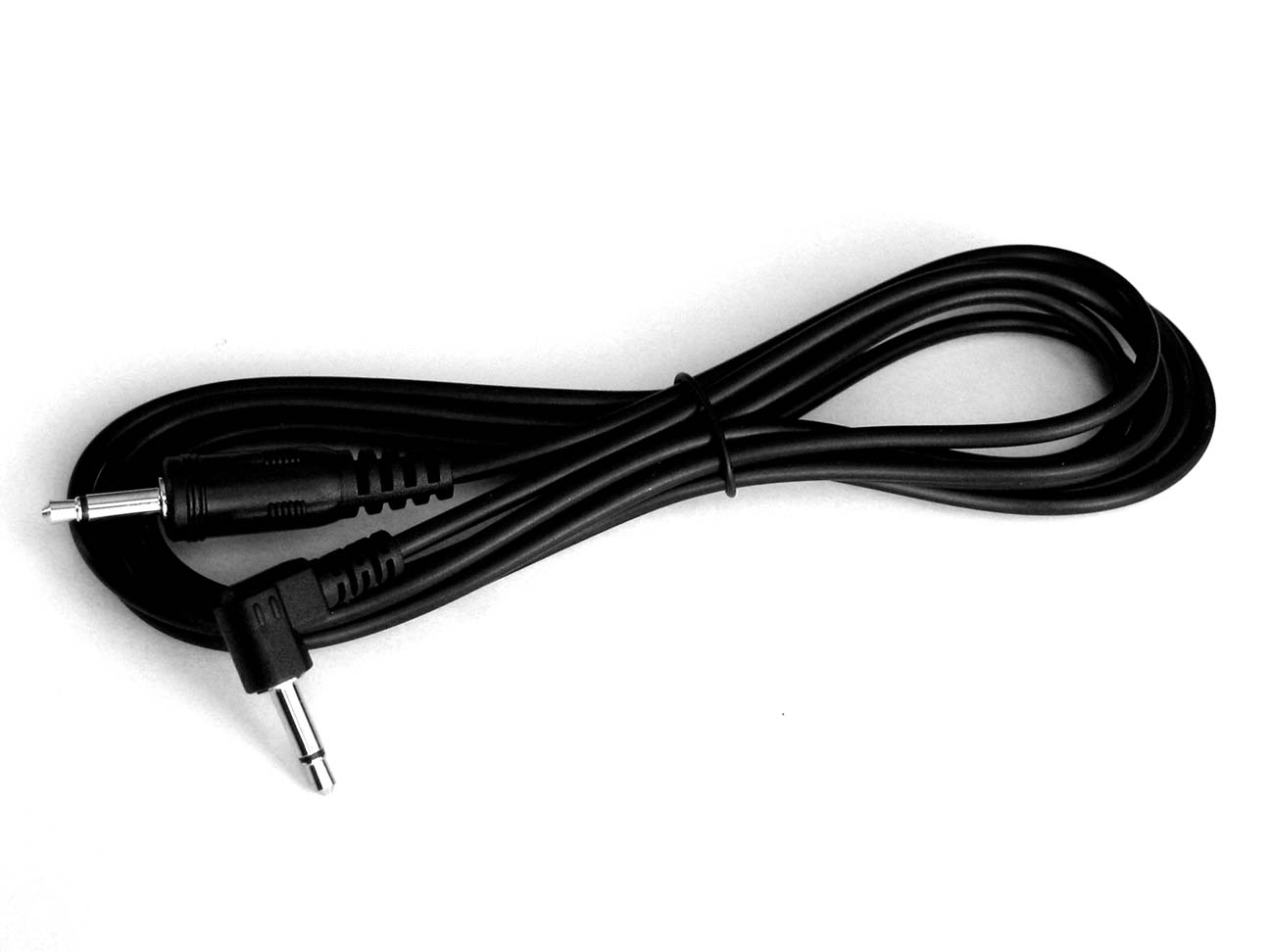

- 3.5mm mono jack cable included
Standby power consumption of HiFi and home cinema equipment is often underestimated. Running 24h per day and 365 days per year, the costs generated by standby consumption add up to significant amounts. Therefore, investment in a standby switch pays off in a very short time:
Contents
- Professional 6x PDU with Trigger Input Switch
- 3.5mm mono jack cable (3.0m)
