Bluetooth Audio Adapter kA-3 VW, Skoda, Seat
TOP
Bluetooth Music Interface with aptX™ HD
for Volkswagen, Skoda, Seat
With music title/artist/album display
Upgrade Kit - Easy Self Installation
HiFi Music Quality
Seamless integration into the original infotainment system
Supports multifunction steering wheel and radio/navigation system
Your car already has an integrated Bluetooth handsfree, but without music playback (A2DP)? Here is the solution:
Bluetooth music interface (A2DP) with HiFi music playback, operation via the media interface of the radio including title display or directly via the multifunction steering wheel. Works in parallel with your existing Bluetooth hands-free kit.for Volkswagen, Skoda, Seat
With music title/artist/album display
Upgrade Kit - Easy Self Installation
HiFi Music Quality
Seamless integration into the original infotainment system
Supports multifunction steering wheel and radio/navigation system
Your car already has an integrated Bluetooth handsfree, but without music playback (A2DP)? Here is the solution:
Features
- Bluetooth® 5.1 Music Interface: Also compatible with the latest iPhone and Android models
- No speakerphone! Hands-free version see our "kX-3" models
- A2DP Bluetooth audio playback profile with automatic connection
- Support for all modern audio codecs including aptX™ HD for Bluetooth music playback in CD quality
- Music playback via Media-In (MDI) emulator or AUX in HiFi stereo quality - an existing AUX socket remains functional 1)
- Display of title/artist/album and music Operation via radio, requirement: radio support, see 9)
- All original functions are retained 10)
- Simultaneous connection with up to 2 mobile phones
- Direct connection to the original radio via the supplied wiring harness - plug and play
- Menu-driven OEM operation using:
- Multifunctional steering wheel
- Media (MDI) menu radio/navigation system: play/pause, next/previous track, forward/rewind (depending on model) 9)
- Alternatively, it can also be operated directly via the phone (holder is recommended)
- Invisible installation
- Easy do-it-yourself installation with detailed instructions - usually no coding via VAS or VCDS necessary! 4)
- No need to cut through cables - can be removed without leaving any residue
4) Provided that the AUX input on the radio is already activated. Otherwise it may have to be activated via VAS or VCDS.
10) Among other things, MFA+ display, climate display, sound system (e.g. Dynaudio), CD changer, AUX input, media interface (limited), RDS, traffic information, complete multifunction steering wheel operation ...
Contents
- VOCOMO kA-3 Bluetooth 5.1 Audio Interface

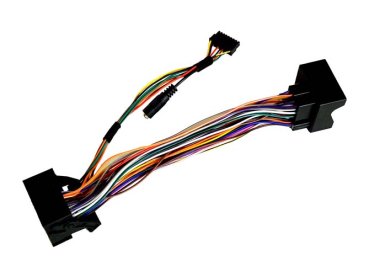

- Adapter Cable
- Detailed Installation and User Manual
- Complete installation kit: No additional cables needed
Compatibility
Do you need any help determining the correct type? Send us a photo of your radio and we will identify the type for you!
A CD changer emulator is only required for radios with footnote 6) and if no real CD changer is available. A CD changer emulator can be selected for radios with footnote 5) if recoding to AUX is not desired. In all other cases, the music is fed in via the radio's AUX input.
This device is compatible with following cars:
- VW Amarok (2H)
- VW Beetle (5C)
- VW Caddy III (2K)
- VW Eos I (1F)
- VW Golf/Jetta V (1K)
- VW Golf/Jetta VI (5K)
- VW Passat B6 (3C)
- VW Passat B7 (3C/36)
- VW Passat CC (3C/35)
- VW Phaeton (3D)
- VW Polo V (6R)
- VW Scirocco III (1K)
- VW Sharan II (7N)
- VW T5.1 (7H)
- VW T5.2 (7E)
- VW Tiguan I (5N)
- VW Touran I (1T)
- VW Touareg I (7L)
- Skoda Fabia II (5J)
- Skoda Octavia II (1Z)
- Skoda Rapid until 06/2015 (NH until MY2015)
- Skoda Superb II (3T)
- Skoda Roomster (5J)
- Skoda Yeti (5L)
- Seat Alhambra II (7N)
- Seat Altea (5P)
- Seat Ibiza IV (6J)
- Seat Leon II (1P)
- Type 1:
- VW RCD310 9)
- VW RNS310/315 9)
- VW RCD510 9)
- VW RNS510 9)
- VW RNS810 9)
- VW R110
- VW RCD210
- Skoda Swing 9)
- Skoda Bolero 9)
- Skoda Amundsen/Amundsen+ 9)
- Skoda Columbus 9)
- Skoda Audience MP3 (not Audience without MP3)
- Skoda Blues
- Skoda Stream MP3 (not Stream without MP3)
- Skoda Dance
- Skody Melody
- Seat RCD310 9)
- Seat RNS310/315 9)
- Seat RCD510 9)
- Seat RNS510 9)
- Seat Ultra Low SE 250 9)
- Seat Ultra Low SE 350 9)
- Seat Ultra Low SE CD 9)
- Type 2:
- VW RCD200 MP3 (not RCD200 without MP3) 8)
- Seat Odeon (RCD200 MP3) 8)
- Type 3:
- VW Delta 6)
- VW RCD200 (without MP3) 6)
- VW RCD300 until MY2006 ("black buttons") 6)
- VW RCD300 from MY2007 ("silver buttons") 5)
- VW RCD500 until MY2006 ("black buttons") 6)
- VW RCD500 from MY2007 ("silver buttons") 5)
- VW RNS300 6)
- Skoda Stream (without MP3) 6)
- Skoda Cruise 6)
- Seat CD1/2/3 until MY2006 6)
- Seat CD1/2/3 from MY2007 5)
- Seat RNS300 6)
- Type 4:
- VW RNS-MFD2 (CD)
- VW RNS 2 (CD)
- Skoda Nexus
- Seat MFD2
- Type 5:
- VW RNS-MFD2 (DVD)
- VW RNS 2 (DVD)
6) For these radios, a CD changer or CD changer emulator is required to activate the audio inputs. If required, you can also order a CD changer emulator for a small additional charge.
8) AUX input may have to be enabled. Alternatively, Type 3 + CD changer emulator can also be used.
9) Supports Media-In emulation: Operation via the media interface of the radio, display of title/artist/album information.
The radio types are different in terms of the AUX pinout. Thus, please select the correct type fitting to your radio model.
In case the AUX input selectable on the radio, it has to be coded via VAS or VCDS. Please see your local VW/Skoda/Seat dealer for that.
Media-In (MDI) display examples:
VW RNS 510 / RNS 310:
Skoda Amundsen+ / VW RCD 310:
Installation example:
